Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) delivers automated FTTH cable manufacturing line systems for the U.S. market market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines together with control systems. It manufactures drop cables, indoor/outdoor cables, together with high-density units for telecom, data centers, and LANs.
This advanced FTTH cable making machinery delivers measurable business value. It offers higher throughput and consistent optical performance with low attenuation. It also complies with IEC 60794 and ITU-T G.652D / G.657 standards. Customers see reduced labor costs and material waste through automation. Full delivery services cover installation and operator training.
The FTTH cable line output line package contains fiber draw tower integration, a fiber secondary coating line, as well as a fiber coloring machine. This system also contains SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, as well as testing stations. Control as well as power specs commonly use Siemens PLC with HMI, operating at 380 V AC ±10% together with modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model offers on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. This system also offers lifetime technical support together with operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Core Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
- Modern FTTH cable manufacturing systems reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Production Line Technology
This fiber optic cable line output process for FTTH requires precise control at every stage. Cable makers use integrated lines that combine drawing, coating, stranding, together with sheathing. That method boosts yield together with speeds up market entry. This line serves the needs of both residential together with enterprise deployments in the United States.
Here, we summarize the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment shapes product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems deliver 600–900 µm jackets for indoor and drop cables.

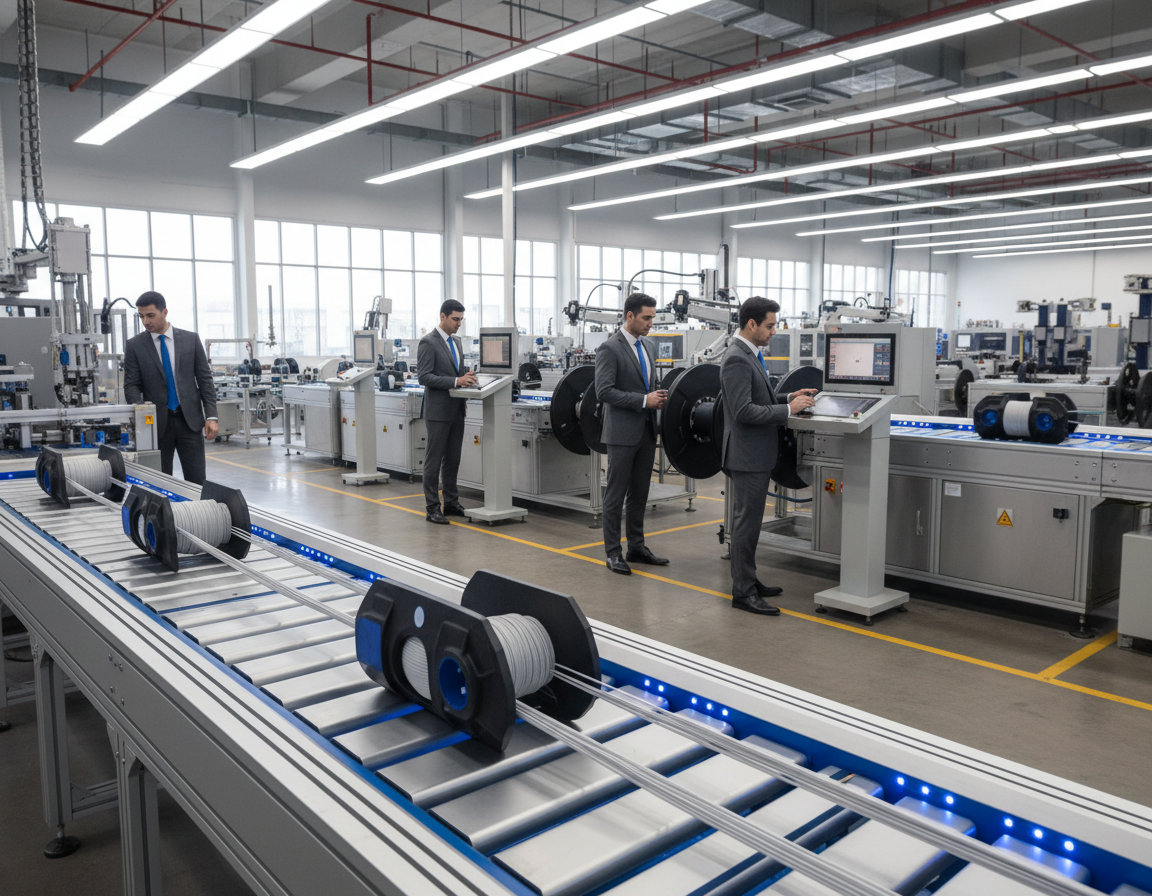

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers using accurate lay length. Fiber coloring machines use multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities shift toward PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics as well as modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, together with armored formats. That transition supports automated fiber optic cable production together with reduces labor dependence.
Key Technologies Driving Industry Innovation
High-precision tension control, based on servo pay-off as well as take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID together with precision heaters supports consistent extrusion consistency.
High-speed UV curing and water cooling improve profile stabilization while reducing energy rely on. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, as well as aging data.
| Operation | Typical Module | Benefit |
|---|---|---|
| Fiber drawing | Draw tower with closed-loop tension feedback | Uniform core size and low attenuation |
| Coating stage | Dual-layer UV curing coaters | Even 250 µm coating that improves durability |
| Identification coloring | Multi-channel fiber coloring machine | Accurate identification for splicing and installation |
| Stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Stable lay length for ribbon and loose tube designs |
| Sheathing & extrusion | Energy-saving extruders with multi-zone heaters | Precise jacket dimensions in PE, PVC, or LSZH |
| Protection armoring | Steel tape/wire armoring units | Improved outdoor mechanical protection |
| Profile cooling & curing | Cooling troughs plus UV dryers | Quicker profile setting with fewer defects |
| Testing | Real-time attenuation and geometry measurement | Live quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment enables firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment In Fiber Secondary Coating Line Operations
This secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. The line prepares the fiber for stranding as well as cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, as well as surface consistency. It protects the glass during handling.
Producers aiming for high-yield, fast-cycle fiber optic cable manufacturing must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single and dual layer coating applications address different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. That helps when fibers are prepared for connectorization.
Temperature control as well as curing systems are critical to final fiber performance. Multi-zone heaters together with Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-output quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime as well as precision in an optical fiber cable line output machine. Extruders such as 50×25 models, screws together with barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron deliver robust control as well as monitoring for continuous runs.
Operational parameters shape preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Handling
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. This step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback as well as tension management. That prevents microbends. Cooling zones together with closed-loop systems keep geometry stable during the optical fiber cable manufacturing process. Current towers log metrics for traceability as well as rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This transfer step ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These services help manufacturers scale toward fast-cycle fiber optic cable line output while maintaining ISO-level output quality checks.
| Key Feature | Purpose | Typical Goal |
|---|---|---|
| Multi-zone heating furnace | Uniform preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Real-time diameter control | Maintain core/cladding geometry and reduce attenuation | ±0.5 μm tolerance |
| Managed tension and cooling | Reduce microbends and maintain fiber strength | Target tension based on fiber type |
| Automated pay-off integration | Smooth transfer to coating and coloring | Synchronized feed rates for zero-slip transfer |
| Integrated online testing stations | Verify loss, strength, and geometry | Loss ≤0.2 dB/km after coating for single-mode |
Advanced SZ Stranding Line Technology In Cable Assembly
This SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. As a result, it is ideal for drop cables, building drop assemblies, as well as any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing employ SZ approaches to meet tight bend together with axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed as well as target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 as well as 20 N.
Integration using a downstream fiber cable sheathing line streamlines line output as well as lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs featuring stranding through a Siemens PLC. Cooling troughs as well as UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows as well as cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, together with a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s fast-cycle coloring technology supports multiple channels together with quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning using secondary coating lines. UV curing at speeds over 1500 m/min helps ensure color as well as adhesion stability for both ribbon together with counted fibers.
The following sections discuss standards as well as coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. That consistency aids technicians in installation and troubleshooting. Consistent coding significantly cuts field faults and accelerates network deployment.
Quality control integrates high-spec fiber identification systems into manufacturing lines. In-line cameras, spectrometers, as well as sensors detect color discrepancies, poor saturation, and coating flaws. This PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye as well as other established vendors offer customizable channels, remote diagnostics, as well as onsite training. That support model reduces ramp-up time together with enhances the reliability of fiber optic cable manufacturing equipment.
Specialized Solutions For Fibers In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This process benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing as well as extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable line output machine must handle pay-off reels sized for reinforcement and align featuring sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. These factors reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack together with tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter together with simplify routing. They are compatible with MPO trunking together with high-count backbone systems.
Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Key Feature | Ribbon Line | Compact Unit | Benefit for Data Centers |
|---|---|---|---|
| Line speed | Up to roughly 800 m/min | Up to 600–800 m/min | More output for large deployment projects |
| Core processes | Automated alignment, epoxy bonding, curing | Extrusion, buffering, and tight-tolerance winding | Improved geometry consistency with lower insertion loss |
| Primary materials | Engineered tapes and bonding resins | PBT, PP, LSZH jackets and buffers | Durable performance and safety compliance |
| Inspection | Inline attenuation and geometry checks | Tension monitoring and dimensional control | Fewer field failures and quicker deployment |
| System integration | Sheathing and splice-ready stacking | Modular compact units for dense cable solutions | Streamlined MPO trunking and backbone builds |
Optimizing High-Speed Internet Cable Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, as well as tension systems. This helps ensure optimal output for flat, round, simplex, as well as duplex FTTH profiles.
Cabling Systems Used In FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In The Fiber Pulling Process
Servo-controlled pay-off as well as take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, as well as crush and aging cycles. These tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers deliver turnkey layouts, remote monitoring, as well as operator training. This cuts ramp-up time for US customers.
Closing Summary
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, as well as ribbon units. This system additionally includes sheathing, armoring, together with automated testing for consistent high-speed fiber manufacturing. A complete fiber optic cable production line is designed for FTTH together with data center markets. This line enhances throughput, keeps losses low, together with maintains tight tolerances.
For U.S. manufacturers as well as system integrators, partnering featuring reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. Such solutions simplify automated fiber optic cable manufacturing as well as reduce time to line output.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension together with curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs as well as turnkey proposals, together with schedule engineer commissioning together with operator training.
