The Definitive Guide to FTTH cable Production Line

You’ve arrived at the definitive guide for the FTTH cable production line. In this comprehensive article, we will delve into the world of fiber optic cables and their crucial role in enabling high-speed data transmission. As the demand for internet connectivity that is both faster and more reliable keeps increasing, understanding the fine points of FTTH cable production becomes essential. This guide will offer you valuable insights into the production of compact fiber unit, covering everything from the fundamentals of cable infrastructure to the detailed manufacturing process.

This guide is designed for everyone, whether you’re new to the field or seeking to expand your knowledge. This guide will delve into the essential components of FTTH cable systems, the function of optical fibers in FTTH technology, and how raw materials are turned into top-quality fiber optic cables. In addition, we will discuss the design considerations, stranding techniques, buffering and jacketing processes, and the efficient operation of the FTTH cable production line.

Stay tuned for the advanced technologies transforming FTTH cable manufacturing, as well as the importance of testing and quality assurance in ensuring the reliability and durability of fiber optic cables. This guide will also cover the concluding phases of packaging and distribution, ensuring the FTTH cable production line operates without interruption from start to finish.

Essential Information:

  • The FTTH cable production line is crucial in enabling high-speed data transmission.
  • The fundamentals of FTTH cable infrastructure and its key components are crucial to understand.
  • The step-by-step production of FTTH cable, starting with silica and resulting in fiber, includes fiber drawing, coating application, and testing.
  • To optimize performance, it’s important to design configurations and layouts that meet specific network requirements.
  • The fiber gains support and protection from stranding techniques and central strength members.

An Introduction to FTTH cable Production

For a proper understanding of FTTH cable production, one must have a clear grasp of the cable infrastructure, key components, and the significance of optical fibers in FTTH technology.

An Overview of the FTTH cable Infrastructure

This network of cables, connectors, and distribution points, which enables data transmission in fiber-to-the-home (FTTH) systems, is what we call the FTTH cable infrastructure. It forms the backbone of high-speed internet connectivity, allowing for seamless data transfer between the provider’s network and the end user’s premises.

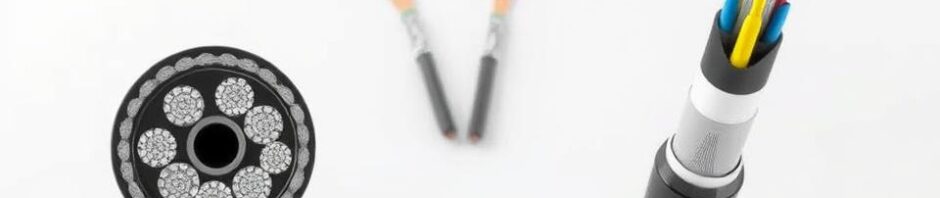

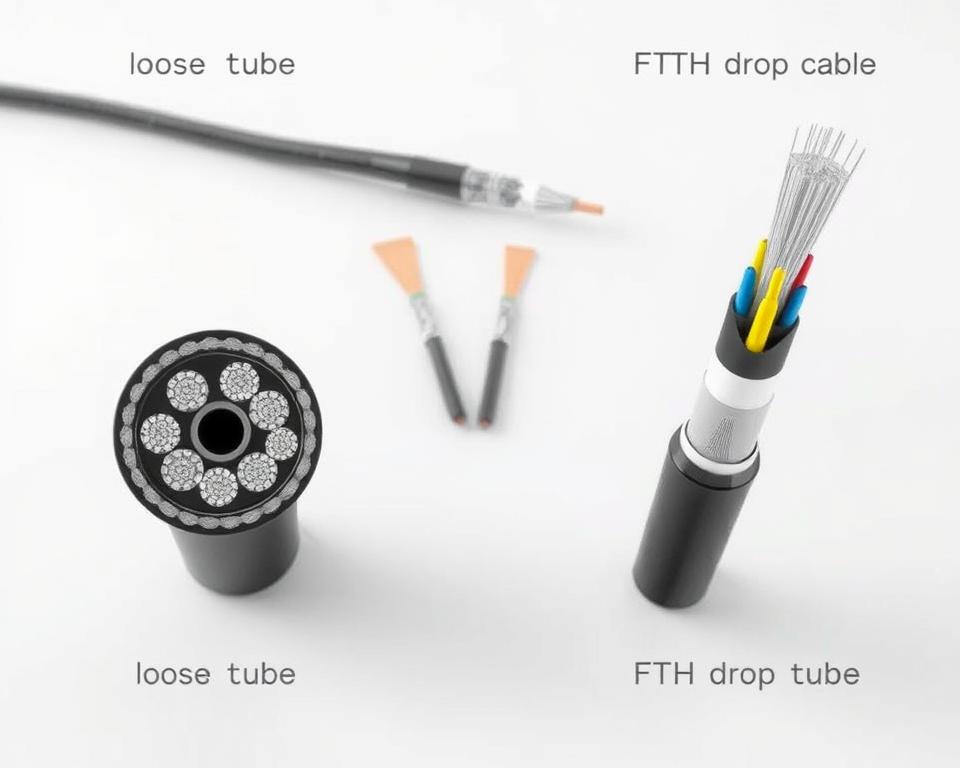

8Uu2U

Important Components of FTTH cable Systems

Working together, several key components in FTTH cable systems ensure the smooth and efficient transmission of data. These components include:

  • These fiber optic cables carry data signals as light. Their design focuses on high bandwidth and low signal loss, which guarantees fast and reliable data transmission.
  • The connection and disconnection of cables when necessary is facilitated by connectors, which play a crucial role in joining fiber optic cables to other cables or devices. A secure and reliable connection is provided by them, which helps minimize signal loss.
  • Multiple end users receive divided and distributed fiber optic signals through the use of distribution points. Without negatively impacting the overall network performance, they help ensure each user receives the necessary bandwidth.

Why Optical Fibers are Key to FTTH Technology

FTTH technology relies heavily on optical fibers. Efficient transmission of data signals in the form of light pulses is the purpose of these thin strands of glass or plastic. Their high bandwidth capacity, low signal loss, and resistance to electromagnetic interference make optical fibers ideal for high-speed data transmission.

A core that carries light signals is at the center of these fibers, and it’s surrounded by a cladding layer that reflects the light back into the core, thus preventing signal loss. Because of this design, optical fibers can transmit data across great distances without any loss in signal quality or speed.

Silica to Fiber: The FTTH cable Production Process

Crafting the Fiber Core: An Explanation of Fiber Drawing

Fiber drawing is the initial step in the FTTH cable production process, and it’s where the cable’s core is made. Pulling and stretching a glass preform made of silica is how this process creates a long, thin fiber. During fiber drawing, the diameter of the fiber is carefully controlled to ensure optimal performance. The quality and composition of the core are crucial in determining how efficiently and accurately the cable can transmit data.

Coating Application: Ensuring Durability

Following the fiber drawing process, coating application is the subsequent step. At this point, a protective layer, referred to as a coating, is applied to the fiber. The coating has several roles, including acting as a buffer against external factors like moisture, which enhances the fiber’s long-term durability and reliability. Careful selection of the coating material ensures it has the right mechanical properties, which keeps the fiber intact and protected for its entire lifespan.

Fiber Testing: Quality at Every Stage

Fiber testing is carried out at various points during the FTTH cable production process to confirm the fiber’s quality and performance. Measurements of the fiber’s physical parameters, such as diameter, attenuation, and tensile strength, are taken during testing, along with inspections of the coating’s uniformity and adhesion. These tests are crucial for ensuring that the fiber meets the required standards and specifications, guaranteeing the overall quality and performance of the final FTTH cables.

Stage of Production Parameters Tested
Fiber Drawing Diameter, Attenuation, Tensile Strength
Coating Application Coating Thickness, Uniformity, Adhesion

Testing Parameters at Various Stages of FTTH cable Production: Table

A summary of the testing parameters measured during different stages of the FTTH cable production process is presented in the table above. Manufacturers can ensure that every fiber used in the cables meets the necessary quality standards by performing thorough testing, which ultimately leads to the high-performance and reliability of FTTH cable systems.

FTTH cable Configuration Design

The design of cable configurations is a vital aspect of fiber-to-the-home (FTTH) cable production, as it helps meet network requirements and optimize performance. Designing the cable involves thinking about things like how much data the network needs to handle, how easy it will be to grow, and how fast the data needs to travel. By adapting cable configurations to their unique needs, companies can guarantee efficient deployment and make the most of their network infrastructure.

A variety of FTTH cable configurations and layouts are available, and each has its own advantages and considerations:

  • The Daisy Chain Configuration involves connecting each subscriber in a sequence to the main distribution point. It’s a solution that saves money and is suitable for areas where there aren’t many subscribers.
  • A direct connection between each subscriber and the central office or hub is characteristic of the star configuration. This design provides flexibility and ease of maintenance, making it ideal for densely populated areas.
  • Ring Configuration: The ring configuration involves connecting subscribers in a circular loop. Redundancy and the ability to keep working even if there’s a fault are features of this configuration, ensuring service continues if the network fails.
  • A tree configuration involves the main distribution point connecting to secondary distribution points, which in turn connect to individual subscribers. This configuration allows the network to grow easily and is often used in areas where there are a lot of subscribers.
  • Distribution points have multiple connections between them in the mesh configuration, which provides high reliability and redundancy. It’s typically used in applications that are critical and require service without any interruptions.

Considering the network requirements and how much growth is expected in the future is essential when designing FTTH cable configurations. Because each configuration has its own set of benefits and limitations, the right one to select depends on factors like how many subscribers there are, the geographical location, and what services are in demand.

By carefully evaluating these factors and collaborating with industry experts, companies can develop customized FTTH cable configurations that meet their specific network requirements and deliver optimal performance.

Understanding Stranding Techniques and Equipment

In the production of FTTH cables, stranding techniques and equipment play a crucial role in ensuring the strength and durability of the cables. Each with its own advantages and applications, different stranding patterns are used. The efficiency and quality of cable production depend on choosing the appropriate stranding machinery. In addition to stranding techniques, central strength members offer extra support and protection to the fiber, which helps make the FTTH cables more reliable overall.

Different Types of Stranding Patterns

When producing FTTH cables, one of the main things to consider is which stranding pattern to use. Depending on what characteristics are desired in the cable, different stranding patterns are used, such as reverse concentric, SZ stranding, and helical stranding. The cable’s performance in terms of flexibility, strength, and resistance to external factors can be improved by the unique features offered by each pattern. Optimal performance and a long lifespan for the FTTH cables are achieved by carefully choosing stranding patterns that meet the specific requirements of the application.

How to Choose Stranding Machinery

Stranding machinery is a crucial component of the FTTH cable production line. It enables the precise formation of the stranding pattern while maintaining the required tension and alignment of the fibers. The diameter of the cable, how fast you need to produce it, and how much automation you want are all factors that will help you choose the right Fiber coloring machine machinery. Manufacturers can meet the demands of producing a lot of cables and also customize them thanks to the increased efficiency and flexibility offered by advanced stranding machines.

Why Central Strength Members are Important

FTTH cables use central strength members to make them mechanically stronger. They provide stability, enhance tensile strength, and protect the delicate fiber within the cable. Acting as a backbone and made from materials like aramid or fiberglass, the central strength members reinforce the cable structure and help it withstand external forces. Their presence ensures that the FTTH cables can withstand installation stresses and maintain signal transmission integrity, making them suitable for various deployment scenarios.

Fiber Protection: Buffering and Jacketing

The protection of the delicate fiber within FTTH cables relies heavily on the buffering and jacketing processes during production. These processes guarantee that the fiber is protected from a wide range of potential threats, including moisture, rubbing, and other external elements that could endanger its performance and how long it lasts.

The Buffering Process and Its Importance

The process of buffering includes applying a protective layer around the fiber, and this layer acts as a barrier against environmental elements. This layer’s job is to keep water out, as water can cause the signal to weaken or even the fiber to break. The cable’s resistance to wear and tear is also enhanced by buffering, which reduces the risk of damage during installation or maintenance.

For the fiber to experience minimal stress, the buffering materials used need to stick to the fiber very well and have a low coefficient of friction. The selection of the appropriate buffering material depends on factors such as the environmental conditions the cable will be subjected to and the desired level of protection.

Factors in Selecting Jacketing Materials

The process of putting an outer layer on to further protect the fiber and the buffering materials is known as jacketing. To offer robust protection from mechanical stress, impact, UV radiation, and other potential hazards, the jacketing material is carefully chosen.

The flexibility of the material, how well it resists flames, and whether it can withstand the environmental conditions are all factors considered when selecting jacketing materials. Materials such as polyethylene (PE), polyvinyl chloride (PVC), and low-smoke zero-halogen (LSZH) compounds are commonly used for jacketing. The specific application and what the industry standards are will determine which material is chosen, as each one has its own pros and cons.

Latest Advancements in Jacketing Technology Application

The way FTTH cables are protected has been revolutionized by the progress in jacketing technologies. With the newest technologies, you get better strength, more flexibility, and better resistance to things in the environment, which means they last longer and are more reliable.

Tight-buffered cables are one of the new jacketing technologies, and they involve buffering each fiber with a thin layer of plastic, which gives great protection and flexibility. Micro-ducts are another technology, and they use strong tubes to hold multiple fibers, which allows for high density and makes cable installation versatile.

Besides these, there are also specialized jacketing technologies that are designed to meet the particular requirements of different industries. As an example, cables that are used in tough outdoor environments might include armored jackets, which offer superior protection against rodents, moisture, and extreme temperatures.

By leveraging the latest jacketing technologies, FTTH cables can be customized to meet the demands of various applications, ensuring optimal performance, longevity, and reliability.

How the FTTH cable Production Line Works

The FTTH cable production line relies on efficient operations to ensure a smooth and streamlined manufacturing process. Producing high-quality fiber optic cables that allow for high-speed internet connectivity depends on each step in the production line playing a vital role. To achieve optimal efficiency, various machinery and equipment are utilized.

Preparing the raw materials, including the silica used for fiber drawing, is the first step in the manufacturing process. Following the preparation of raw materials, the fiber drawing process begins, and the cable’s core is carefully crafted to meet the desired specifications. Coating application follows, ensuring durability and protection for the fiber.

The highest standards for the cables are ensured by making quality a top priority and conducting rigorous fiber testing at every stage of the production line. This includes checking for things like how much the signal weakens, the bandwidth, and the amount of signal loss.

Efficiency is a key factor in the operations of the FTTH cable production line. Optimizing the use of machinery and equipment allows manufacturers to reduce production time and costs and increase the amount they produce. Additionally, efficient processes contribute to the overall quality of the cables.

With its various stages and components, the manufacturing process can be quite complex. However, by using efficient operations and always trying to find ways to make things better, manufacturers can enhance the efficiency and effectiveness of their FTTH cable production line.

The following table summarizes the key machinery used in the FTTH cable production line and what each machine does in the manufacturing process, to give you a complete understanding of how it all works:

Machine Role
Fiber Drawing Machine Produces the fiber optic cable core by pulling and stretching the silica material.
Coating Machine Applies a protective coating to the fiber optic cable, ensuring durability and resistance to external factors.
Fiber Testing Equipment Conducts various tests on the fiber optic cable to ensure quality and performance.
Spooling Machine Winds the finished fiber optic cable onto spools for packaging and distribution.
Jacketing Machine Applies an outer jacket to the fiber optic cable, providing additional protection and enhancing its handling.

By leveraging advanced machinery and technologies, manufacturers can streamline their production line operations, improve efficiency, and deliver high-quality FTTH cables that meet the increasing demand for high-speed internet connectivity.

How Advanced Technologies are Transforming FTTH cable Manufacturing

The field of FTTH (Fiber to the Home) cable manufacturing is constantly changing, and advanced technologies are crucial for making it more efficient and of higher quality. Automation, AI integration, and fiber coloring machines have completely changed the production process due to the increasing demand for high-speed data transmission, which has driven innovation and led to the creation of superior products.

The Impact of Automation on Fiber Optic cable Production

The way fiber optic cables are made has been significantly changed by automation. The manufacturing process can be controlled very precisely thanks to advanced machinery and robotics, which leads to consistent quality and fewer errors. Because of this automation, more cables can be produced faster and with better accuracy, which ultimately saves money and makes customers happier.

How AI is Integrated for Quality Control

Using artificial intelligence (AI) in the quality control process allows FTTH cable manufacturers to reach new levels of accuracy and reliability. AI algorithms have the ability to analyze production data as it happens, identifying any changes or issues that could affect the quality of the cables. Taking a proactive approach to quality control helps to reduce errors, make production more efficient, and ensure that only the highest quality FTTH cables are made available to customers.

The Benefits of Fiber Coloring Machines

The introduction of fiber coloring machines has revolutionized FTTH cable manufacturing by offering enhanced customization options. Color codes can be applied to optical fiber strands by fiber coloring machines, which allows for easy identification and makes cable management more efficient during installation and maintenance. By using this technology, manual color coding is no longer needed, which reduces the chance of errors and makes the entire process of deploying cables more efficient.

Quality Assurance in Fiber Optics: The Importance of Testing

It’s of the utmost importance to ensure the highest quality in the field of fiber optics. This goal is reached by implementing thorough testing and quality assurance measures at every stage of the production process. Standardized testing protocols play a crucial role in guaranteeing the reliability and consistency of fiber optic cables.

How Standardized Testing Protocols are Implemented

The purpose of establishing standardized testing protocols is to ensure that every fiber optic cable meets the required quality standards. These protocols outline specific testing procedures and criteria that must be followed during each stage of the production process. By adhering to these protocols, manufacturers can identify and address any potential issues, ensuring that only the highest quality cables are delivered to customers.

OTDR: A Key Tool for Quality Checks

The use of Optical Time-Domain Reflectometer (OTDR) is integral in performing quality checks on fiber optic cables. OTDR is a testing instrument that utilizes light pulses to measure the loss and reflectance along the length of an optical fiber. Technicians can identify problems like fiber bending, signal loss, or damage to the connectors by analyzing the OTDR traces. This helps them find exactly where any problems are and fix them, which makes sure the cable is of good quality and works well.

Steps to Maintain Rigorous Quality Assurance Standards

Quality assurance standards are maintained throughout the entire production process to ensure consistent and reliable performance of fiber optic cables. These standards include guidelines for things like choosing materials, the manufacturing processes, and how the final product is tested. Manufacturers can guarantee that their products meet the highest quality and performance levels required by the industry by following these strict standards.

FTTH cable Production: From Packaging to Distribution

The last steps in the production of FTTH cable production line, which are packaging and distribution, are the focus of this section. It’s crucial to ensure that the cables are packaged correctly and efficiently after they have been through all the different manufacturing processes, as this helps with their deployment and installation in the field. Furthermore, protective packaging solutions are important for safeguarding the delicate fiber optic cables when they are being transported and stored. It’s essential to have efficient logistics and supply chain management to ensure that FTTH products are delivered to customers in a timely way and effectively meet their connectivity needs.

Efficient cable Spooling Techniques

For FTTH cables to be installed smoothly and easily, efficient techniques for spooling them are vital. Storing and transporting cables in an organized and practical way is possible with cable spools, which also reduces the chance of them getting tangled or damaged. The deployment process becomes quicker and easier for cable installers when they use optimized cable spooling techniques. When cables are spooled properly, the installation looks neater and more professional overall.

Best Packaging Practices for Fiber Optic cables

To protect the delicate fiber optic cables during transportation and storage, it is essential to implement effective protective packaging solutions. These solutions need to offer cushioning, absorb shocks, and resist external factors like moisture, dust, and physical impact. Manufacturers can make sure the fiber optic cables arrive in perfect condition and ready to be installed by using high-quality packaging materials and techniques. This not only safeguards the integrity of the cables but also enhances customer satisfaction by minimizing the risk of damage or performance degradation.

The Importance of Logistics and Supply Chain Management in FTTH

It’s very important to have efficient logistics and supply chain management to successfully deliver FTTH products to customers. This involves carefully planning the transportation, storage, and distribution of the cables to ensure timely and reliable delivery. With effective supply chain management, delays are minimized, the flow of products is optimized, costs are reduced, and customer service is improved.

Summary

This ultimate guide to the FTTH cable production line has provided a detailed look at the process of manufacturing fiber optic cables for high-speed internet connectivity, in conclusion. The significance of the FTTH cable production line in enabling data transmission that is both fast and reliable has been highlighted throughout this article.

High-speed internet connectivity is made possible by fiber optic cables, which play a critical role in allowing for seamless communication, streaming, and online activities. From fiber drawing to buffering and jacketing, the step-by-step process of FTTH cable production makes sure these cables are durable and of high quality.

Efficiency and accuracy in the manufacturing process have been increased thanks to advanced technologies such as automation and AI integration, which have revolutionized it. The reliability and performance of fiber optics are ensured by having standardized testing protocols and strict quality assurance standards in place.

Making sure these essential cables are deployed efficiently and protected during transportation is the purpose of the final steps in FTTH cable production: packaging and distribution. Meeting the increasing global demand for high-speed internet connectivity relies on the expertise and precision involved in the FTTH cable production line.
